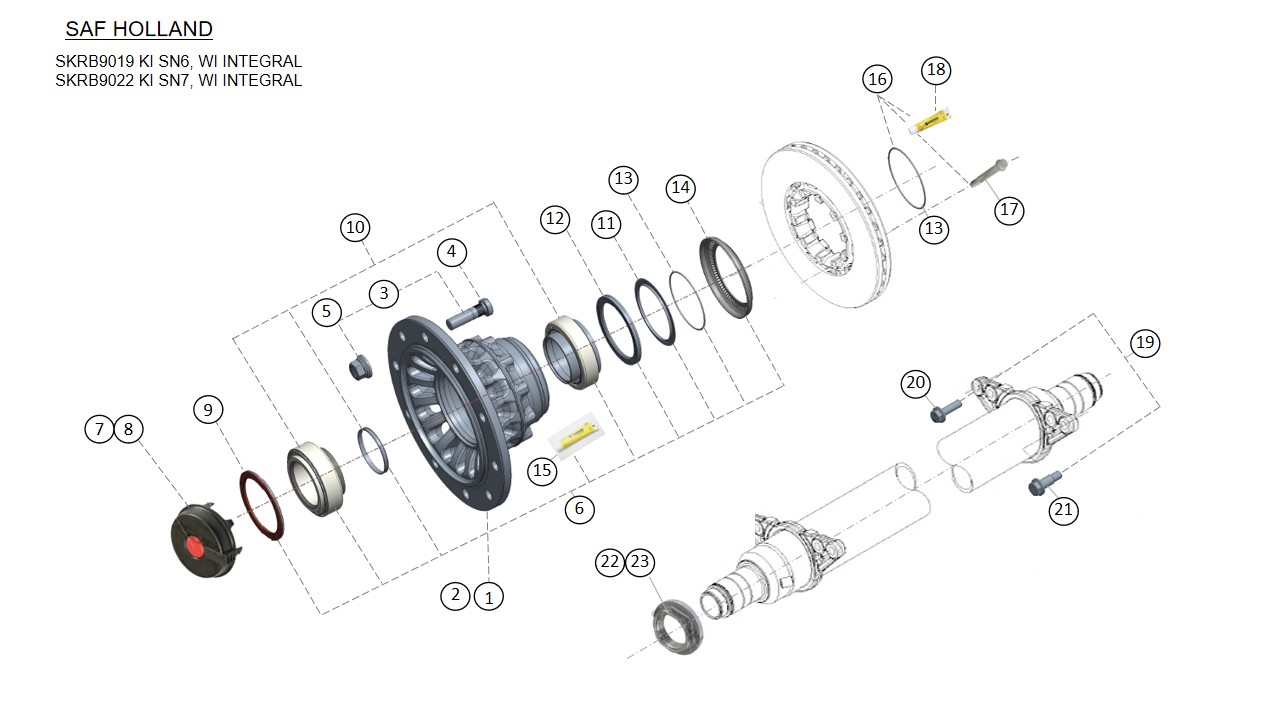

SAF HOLLAND - SKRB9019 KI SN6 WI INTEGRAL / SKRB9022 KI SN7 WI INTEGRAL

Front Suspension Parts Catalog

Column View Side by Side Toggle Image Reset

💡 Tap numbered circles to view part details

Filter

Key	Mansons #	Description	Qty	OEM No.	Remark
1	600.123	WHEEL HUB ASSEMBLY	2	3307303000, 3307303001	Included 2,6
2	600.123.1	WHEEL HUB	2	3307303000S, 3307303001S
3	600.245	WHEEL BOLT ASSEMBLY	20	3302115600	Included 600.115+600.072
3	600.298	WHEEL BOLT ASSEMBLY	20	3302115700	Included 600.122+600.072
4	600.122	WHEEL BOLT	20	1303112010
4	600.115	WHEEL BOLT	20	1303111811
5	600.072	WHEEL NUT	20	4247301201
6	600.511	WHEEL HUB REPAIR KIT	2	3434301800	Included 9 to 15
7	600.111	HUB CAP WITH O RING	2	3304010200, 3304010201
8	600.111.1	HUB CAP	2	3304010301
9	790.005CV	SEAL, OUTER	2	-
10	T126	WHEEL BEARING	2	4200101500
11	790.005BV	SEAL, INNER	2	-
12	790.005E	SEAL RING	2	-
13	600.512	O RING	2	4315007500
14	790.005D	IMPULSE WHEEL	2	4029106300
15	MBL5	GREASE MOBIL, 100 GMS	2	-
16	600.157	BRAKE DISC REPAIR KIT	2	3434366200, 3434366201	Included 13,17,18
17	600.018	BRAKE DISC BOLT	2	4375100510, 4375100512
18	MBL1	GREASE, 25 GMS	2	-
19	600.256	BRAKE DISC REPAIR KIT	2	3434365600	Included 20,21
20	600.198	BRAKE DISC BOLT	10	4343291410
21	600.199	FLANGE BOLT	2	4375100400
22	600.126	AXLE END NUT, LH	2	1011008700	Left Hand
23	600.127	AXLE END NUT, RH	2	1011008800	Right Hand

Showing 1–25 of 25 parts 25 per page 50 per page 100 per page All

Page 1 of 1

Note: Click part numbers or markers for details. Swipe table horizontally to see all columns.
